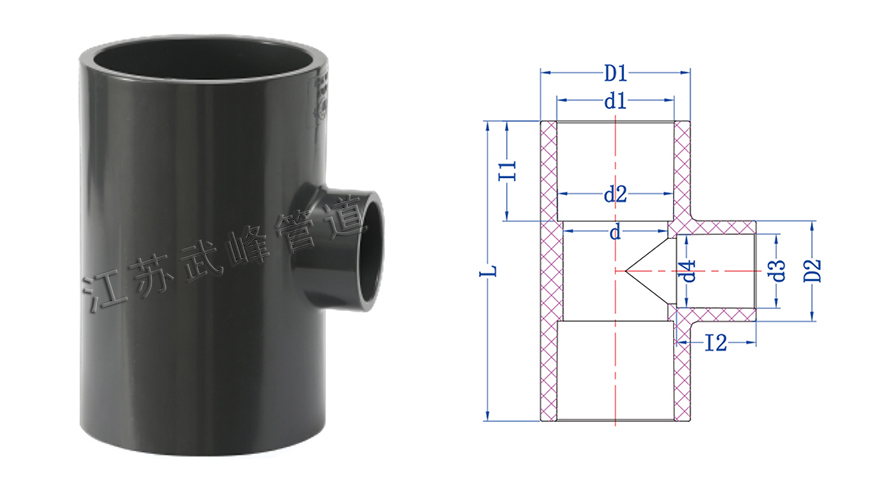

異徑三通
|
Nominal |
Socket Type |
Structural Diameter |
|
SIZE |
d1 |
d2 |
I |
D |
d |
L |
|
3/4"*1/2" |
25.3 |
25.1 |
19.0 |
33.0 |
23.0 |
66.0 |
|
1"*3/4" |
32.3 |
32.1 |
22.0 |
41.0 |
29.0 |
80.0 |
|
1-1/4"*1" |
40.3 |
40.1 |
26.0 |
50.0 |
37.0 |
96.0 |
|
1-1/2"*1-1/4" |
50.3 |
50.1 |
32.0 |
61.0 |
47.0 |
118.0 |
|
2"*1-1/2" |
63.3 |
63.1 |
38.0 |
75.0 |
60.0 |
143.0 |
|
2-1/1"*2" |
75.3 |
75.1 |
44.0 |
92.0 |
72.1 |
171.0 |
|
3"*2" |
90.3 |
90.1 |
51.0 |
110.6 |
87.1 |
197.0 |
|
3"*2-1/2" |
90.3 |
90.1 |
51.0 |
110.6 |
87.1 |
197.0 |
|
4"*2-1/2" |
110.4 |
110.2 |
61.0 |
127.0 |
106.1 |
238.0 |
|
4"*3" |
110.4 |
110.2 |
61.0 |
127.0 |
106.1 |
238.0 |
