管帽
|
Nominal |
Outside Dia |
Socket Type |
Structural Diameter |
|

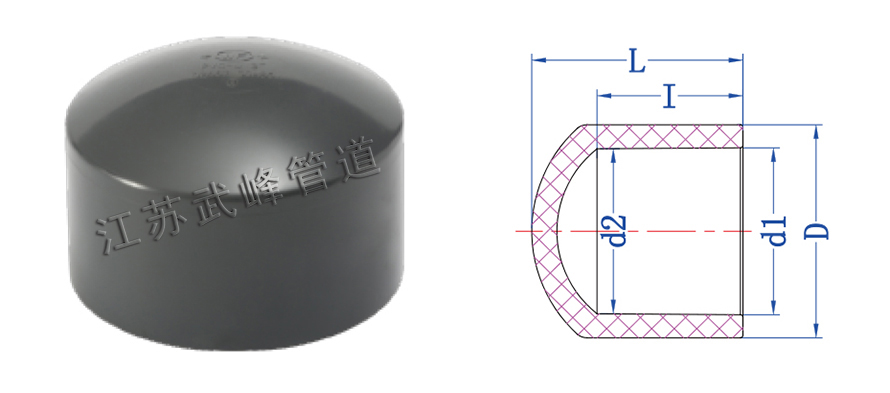

SIZE |
D |
d1 |
d2 |
I |
L |
|
1/2" |
27.0 |
20.3 |
20.1 |
16.0 |
20.0 |
|
3/4" |
32.0 |
25.3 |
25.1 |
20.0 |
20.0 |
|
1" |
40.0 |
32.3 |
32.1 |
24.0 |
24.0 |
|
1-1/4" |
50.0 |
40.3 |
40.1 |
28.0 |
28.0 |
|
1-1/2" |
63.0 |
50.3 |
50.1 |
32.0 |
32.0 |
|
2" |
75.0 |
63.3 |
63.1 |
38.0 |
38.0 |
|
2-1/2" |
92.0 |
75.3 |
75.1 |
47.0 |
47.0 |
|
3" |
110.0 |
90.3 |
90.1 |
52.5 |
52.5 |
|
4" |
133.0 |
110.4 |
110.1 |
63.0 |
63.0 |
|
6" |
186.0 |
160.5 |
160.2 |
86.0 |
86.0 |
|
8" |
261.0 |
225.7 |
225.3.2 |
130.0 |
130.0 |
