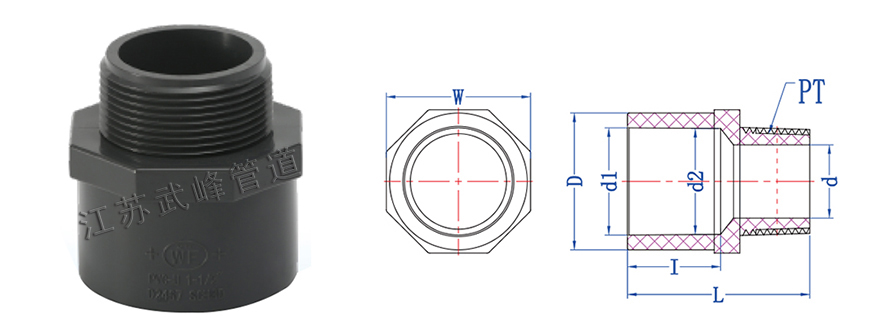

外牙接頭
|
Nominal |
Outside Dia |
Socket Type |
|
|
Structural Diameter |
|
SIZE |
D |
d1 |
d2 |
I |
d |
L |
NPT（牙/寸） |
|
1/2" |
30 |
20.3 |
20.1 |
16 |
13.2 |
50.0 |
14 |
|
3/4" |
35 |
25.3 |
25.1 |
19 |
19.0 |
50.5 |
14 |
|
1" |
44 |
32.3 |
32.1 |
22 |
24.0 |
59.0 |
11 |
|
1-1/4" |
54 |
40.3 |
40.1 |
26 |
32.0 |
63.4 |
11 |
|
1-1/2" |
60 |
50.3 |
50.1 |
32 |
38.0 |
67.0 |
11 |
|
2" |
73 |
63.3 |
63.1 |
38 |
50.0 |
73.0 |
11 |
