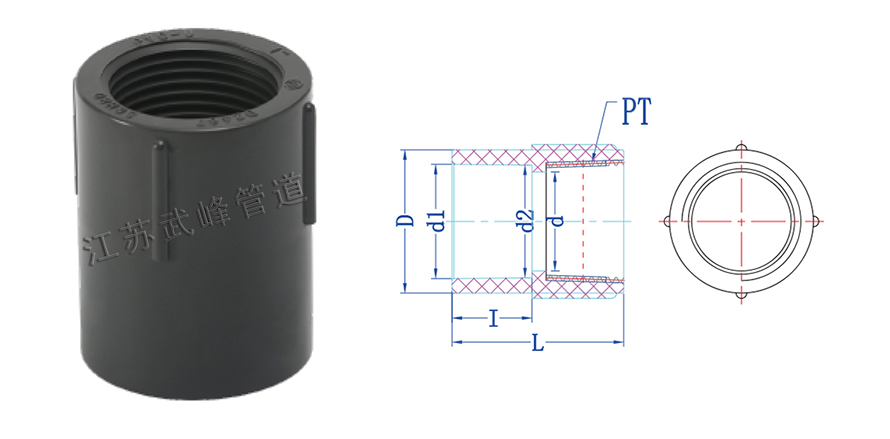

內(nèi)牙接頭
|
Nominal |
Outside Dia |
Socket Type |
|
|
Structural Diameter |
|
SIZE |
D |
d1 |
d2 |
I |
d |
L |
NPT（牙/寸） |
|
1/2" |
30 |
21.4 |
21.25 |
24 |
13.2 |
44 |
14 |
|
3/4" |
35 |
26.75 |
26.58 |
27 |
19.0 |
50 |
14 |
|
1" |
44 |
33.52 |
33.28 |
30 |
24.0 |
55 |
11.5 |
|
1-1/4" |
54 |
42.28 |
42.05 |
34 |
32.0 |
62 |
11.5 |
|
1-1/2" |
60 |
48.4 |
48.12 |
37 |
38.0 |
67 |
11.5 |
|
2" |
73 |
60.45 |
60.18 |
40 |
50.0 |
73 |
11.5 |
