直接頭
|
Nominal |
Socket Type |

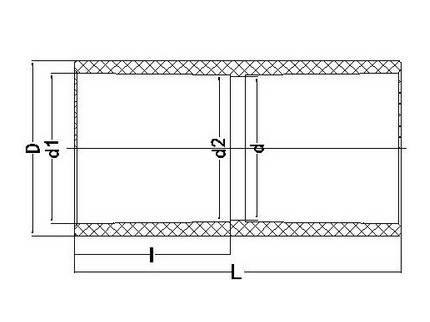

Structural Diameter |
|
SIZE |
d1 |
d2 |
I |
D |
d |
L |
|
1/2" |
22.40 |
21.52 |
30.0 |
29.00 |
16.0 |
64.00 |
|
3/4" |
26.45 |
25.42 |
35.0 |
33.10 |
20.0 |
73.60 |
|
1" |
32.55 |
31.37 |
40.0 |
40.00 |
25.0 |
84.00 |
|
1-1/4" |
38.60 |
37.31 |
44.0 |
46.00 |
31.0 |
92.00 |
|
1-1/2" |
48.70 |
47.21 |
55.0 |
57.00 |
40.0 |
115.00 |
|
2" |
60.80 |
59.10 |
63.0 |
70.00 |
51.0 |
130.60 |
|
2-1/2" |
76.60 |
75.30 |
64.0 |
88.00 |
72.0 |
132.00 |
|
3" |
89.60 |
88.29 |
64.0 |
104.60 |
77.0 |
132.50 |
|
4" |
114.70 |
113.20 |
84.0 |
134.00 |
100.0 |
173.00 |
