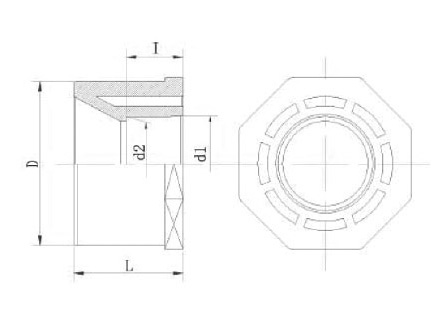

異徑直接
|
Nominal |
|
Socket Type |
Structural Diameter |
|
SIZE |
D |
d1 |
d2 |
d1 |
L |
|
3/4"*1/2" |
26.67 |
21.54 |
21.23 |
17.00 |
33.00 |
|
1"*3/4" |
33.40 |
26.87 |
26.57 |
22.50 |
36.00 |
|
1-1/4"*1" |
42.16 |
33.65 |
33.27 |
28.00 |
42.00 |
|
1-1/2"*1-1/4" |
48.26 |
42.42 |
42.04 |
38.00 |
45.00 |
|
2"*1-1/2" |
60.33 |
48.56 |
48.11 |
42.00 |
53.00 |
|
2-1/1"*2" |
73.03 |
60.63 |
60.17 |
54.00 |
56.50 |
|
3"*2" |
88.90 |
60.63 |
60.17 |
54.00 |
60.00 |
|
3"*2-1/2" |
88.90 |
73.38 |
72.85 |
66.00 |
60.00 |
|
4"*2" |
114.30 |
73.38 |
72.85 |
65.00 |
72.00 |
|
4"*3" |
114.30 |
89.31 |
88.70 |
80.00 |
72.00 |
