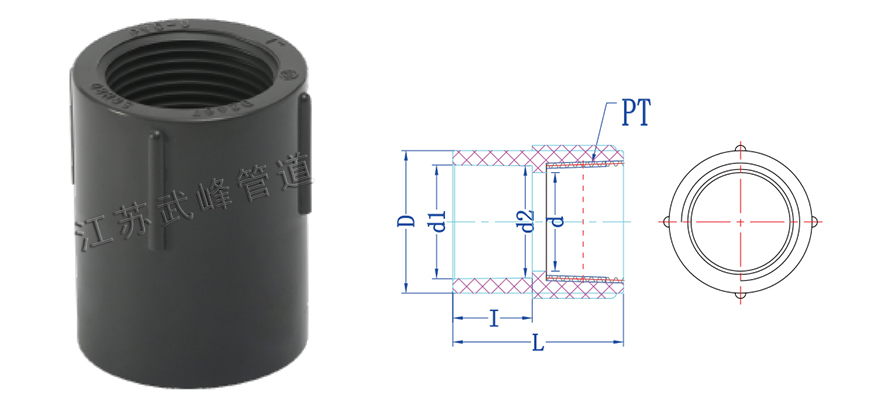

內(nèi)牙接頭
|
Nominal |
Outside Dia |
Socket Type |
Structural Diameter |
|
SIZE |
D |
d1 |
d2 |
I |
d |
L |
PT（牙/寸） |
|
1/2" |
30.00 |
21.40 |
21.25 |
24.00 |
13.20 |
44.00 |
14 |
|
3/4" |
35.00 |
26.75 |
26.58 |
27.00 |
19.00 |
50.00 |
14 |
|
1" |
44.00 |
33.52 |
33.28 |
30.00 |
24.00 |
55.00 |
11.5 |
|
1-1/4" |
54.00 |
42.28 |
42.05 |
34.00 |
32.00 |
62.00 |
11.5 |
|
1-1/2" |
60.00 |
48.40 |
48.12 |
37.00 |
38.00 |
67.00 |
11.5 |
|
2" |
73.00 |
60.45 |
60.18 |
40.00 |
50.00 |
73.00 |
11.5 |
